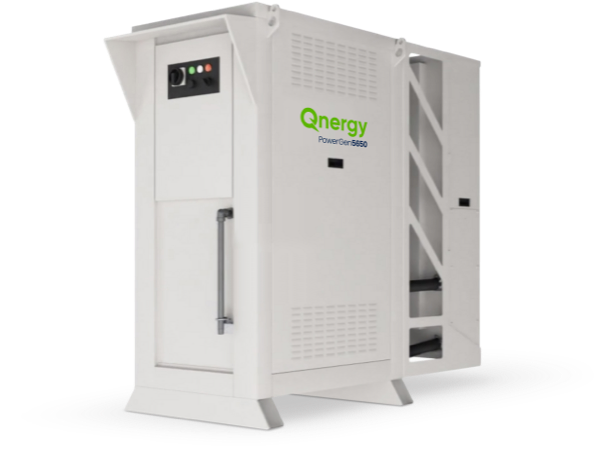

PowerGen 5650

PowerGen 5650
Generating up to 5650W of electricity, the PowerGen 5650 is the small footprint, high output solution for high load applications.
Download PG5650 Specifications Sheet
Please enter your email to download the PowerGen 5650 Specifications Sheet
General
Make
Qnergy
Model
QRP 2A-HNS
Engine
QB80
Engine Type
Stirling Engine
Engine Controller
QEC 3.5
QB80 Engine Specifications
Engine Model
QB80
Engine Type
Stirling Engine
Engine Architecture
Free Piston (frictionless)
Service
None
Weight
242 lbs
Length
33.10 in
Diameter
14.45 in
Charging Gas
Inert Helium

Electrical System
System Output Power | See Configuration |
Power Max Gage Wire Interface | 6-20 AWG |
Cable Gland Input | 3/4” Std |
Ignition Standby Battery (Standard) | Sealed AGM Deep Cycle, 12V DC 40 Ah |
Battery Capacity (Optional: for Increased Standby) | Up to 160 Ah |
Safety | E-stop (normally closed) |
Cooling System
Cooling System Type | Closed Loop |
Pump Type | High Efficiency Circulating Pump |
Cooling Fan Type | EC Fan (qty. 2) |
Coolant Type | Automobile 50/50 Antifreeze |
Max Coolant Volume | 4.2 gal |
Fuel System
Fuel Type | Dry Natural Gas, Propane (C1-C4),other gaseous fuel |
Burner | Pre-mix |
Ignition | Direct |
Gas Regulator | 2-Stage |
Gas Pressure Monitor | Transducer |
Fuel Port | 1/2” NPT Male |
Communication
Ethernet | RJ45 |
Protocol | Modbus TCP/IP |
Internet Infrastructure | TCP/IP |
Remote Monitoring Platform | Qnergy SmartView |
Discrete I/O’s | Configurable |
Inputs (Dry Contact) | x6 (16-20 AWG) |
Outputs (Relay) | x8 (16-20 AWG) (Max 250 V / 1 A) |
*contact us regarding using any non-standard gaseous fuels (C1-C4)
